产品资讯-台湾moujen行程开关-MEA |
|
|
|
|
| |
 輕小型限制開關 (Made in
Taiwan) |
|
|
 功能 :
|
 |
|
 可配合各種不同之連桿及頭 |
|
| 具多種使用特性曲線 |
|
|
|
| 接線頭具帽式覆蓋螺絲 |
|
| 可調式 |
|
| 內裝接地螺絲 |
|
| 防塵、防油、防水 |
|
適用溫度 +5 至
+160
.
(-15 to
+70) |
|
|
額定電壓 : |
| |
| 5A |
125 OR 250V AC |
| 0.4A |
125 V DC |
|
| |
|
|
電氣迴路 : |
| |
 |
|
|
|

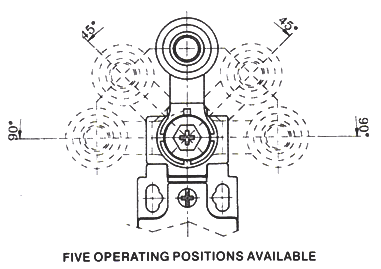

FIELD ADJUSTABLE : |
|
Rotary motion roller lever and rod actuators are
adjustable through 360°. They may be set for operation
clockwise, counter-clockwise, or in both directions. Operating
heads may be positioned in any of four 90° and four 45°
positions. |
|
|
|

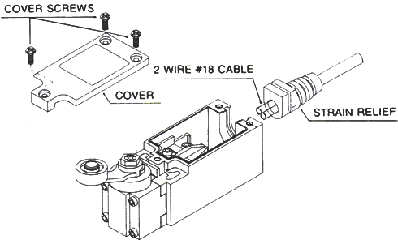

EASY WIRING : |
| 1. |
Loosen cover screws and remove cover. |
| 2. |
Remove rubber strain relief from switch cover. |
| 3. |
Slip strain relief over cable. |
| 4. |
Fasten terminal screws tightly after inserting cables or
terminals. |
| 5. |
After wiring, insert strain refief into the groove of the
switch cover. |
| 6. |
Fasten 3 cover screws evenly. Do not over
tighten. |
| 7. |
Recommended Cable-# 18/2 SJT Flexible. |
|
|
 |
|
| 特性 : |
|
| Operating speed |
0.5mm to 50m/sec |
| Operating frequency |
Mechanically:120
operations/min.
Electrcally: 30 operatioms/min. |
| Contact resistance |
15m  max.(initial) |
| Insulation resistance |
100M min,(at 500 VDC) |
| Dielectric strength |
1,000VAC. 50/60 Hz for 1 minute
between non-continuous terminals
1,500VAC. 50/60 Hz
for 1 minute between each terminal and non-current
carrying metal part and between each terminal and
ground. |
| Vibration |
Malfunction durability:10 to 55
Hz;
1.5mm double amplitude. |
| Shock |
Mechanical durability:
Approx.
1,000m/sec2 (approx.100G's)
Malfunction
durability :
Approx.300m/sec2 (approx.30G's) |
| Ambient temperature |
Operating : -15 to +70 |
| Humidity |
95% RH max |
| Service life |
Mechanically: 10,000,000 operations
min
Electrically: 500,000 operations
min,(2A,110VAC)MAX. |
| Degree of protection |
IEC 529 class IP65 |
|
|
 |
|
| |
 |
|

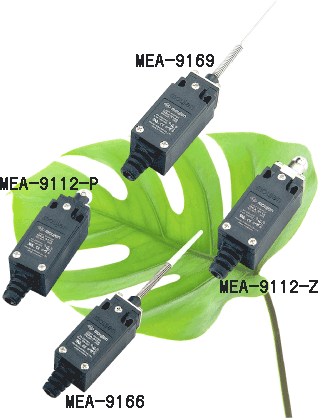

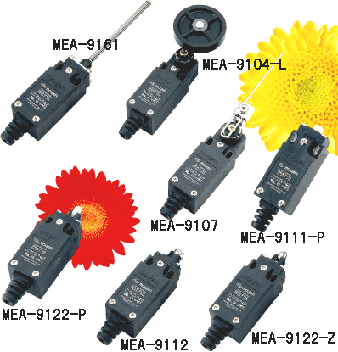

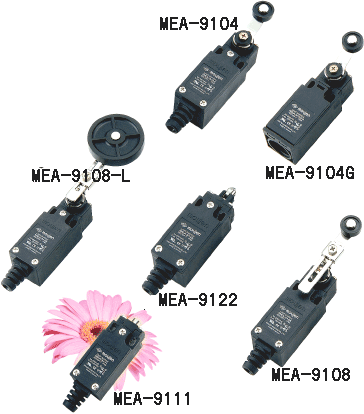

| ORDER GUIDE |
|
|
標準型 :
| MEA-9104 |
MEA-9107 |
MEA-9018 |
MEA-9111 |
MEA-9112 |
| MEA-9122 |
MEA-9161 |
MEA-9166 |
MEA-9169 |
|
平底 (G) 型 :
| MEA-9104G |
MEA-9107G |
MEA-9018G |
MEA-9111G |
MEA-9112G |
| MEA-9122G |
MEA-9161G |
MEA-9166G |
MEA-9169G |
|
 50mm
橡膠滾輪 (定製品) : 50mm
塑膠滾輪 (定製品)
| MEA-9111-P |
MEA-9112-P |
MEA-9122-P |
金屬頭部 (定製品)
預附電纜型式 (定製品)
MEA-9104A- |
MEA-9107A- |
MEA-9018A- |
| MEA-9111A- |
MEA-9112A- |
MEA-9122A- |
| MEA-9161A- |
MEA-9166A- |
MEA-9169A- |
|
|
|
|
| ORDER GUIDE |
|
|
|
平底型
|
|
| |
|
|
預附電纜型式
|
|
| |
|
| |
|
|
|
|
|
|
