产品资讯-台湾moujen行程开关-MN |
|
|
|
|
|
|
 小型橫式限制開關 (Made in
Taiwan) |
|
|
|
 功能 :
 側邊固定式
接點敏捷
具各種不同之頭及連桿
密閉式連桿
輔助式密封結構
塑膠成型固定座
適用溫度 : +5 to
+175 (-15 to
+80).
|
 |
|
額定電壓 :
| 10A |
250V AC |
0.5A |
125 V AC |
|
|
特性 :
| Operating speed |
0.01mm to 50cm/sec(at pin plunger) |
Operating frequency |
120 operations/min.
|
Contact resistance |
25m  max.(intial) |
Insulation resistance |
100M min.(at 500 VDC) |
Dielectric strength |
1,000 VAC, 50/60 Hz for 1 minute between
non-continuous terminals
2000 VAC, 50/60 Hz for 1
minute between current-carrying and non-current carrying
parts and between each terminal and ground. |
Vibration |
Malfunction durability:10 to 55Hz 1.5mm double
amplitude
|
Shock |
Mechanical durability:
1,000m/sec2 (approx. 100G's)
Malfuncation
durability:300m/sec2 (approx.30
G's) |
Ambient operationg temperature |
Operating: -10 to + 80
|
Humidity |
95% RH max (at +20 to +35)
|
Service life |
Mechanically:
10,000,000 operations min.(at rated
OT value)
Electrically:(2A, 110VAC)MAX
500,000
operations min. |
Degree of protection |
IEC:IP65 |
|
|
電氣迴路 :
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

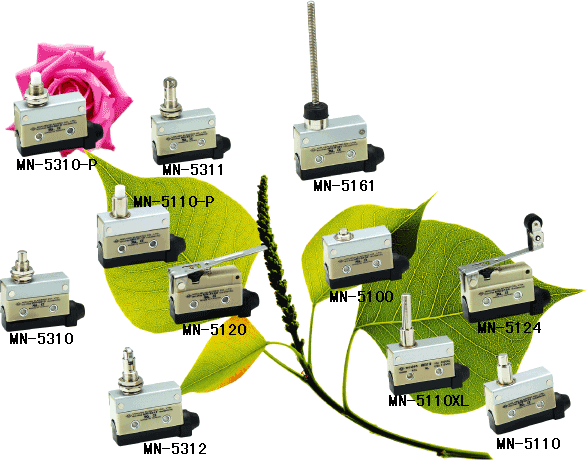

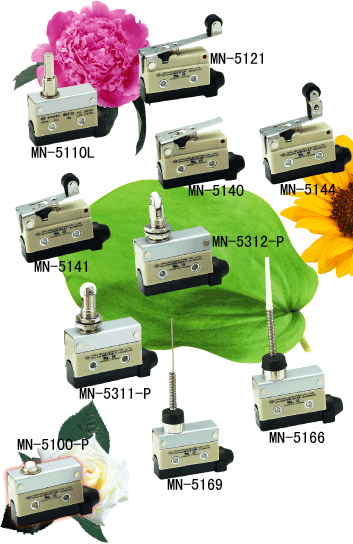

訂購索引:
標準型
| MN-5100 |
MN-5110 |
MN-5110L |
MN-5110XL |
MN-5120 |
MN-5121 |
| MN-5124 |
MN-5140 |
MN-5141 |
MN-5144 |
MN-5161 |
MN-5166 |
| MN-5169 |
MN-5310 |
MN-5311 |
MN-5312 |
|
|
 |
塑膠頭部或滾輪 (定製品)
| Mn-5100-P |
MN-5110-P |
MN-5310-P |
MN-5311-P |
MN-5312-P |
|
| |
|
| |
|
|
|
|
|
|
|
|
|
